Plan a Layered Dimensional Sign Before You Approve the Proof

Suppose you have a vector logo and a wall selected for it. “Make it three-dimensional” is a useful starting request, but it can describe several different signs: individual letters attached to the wall, a raised symbol on a flat panel, or a stack of shaped pieces with visible edges. Each arrangement changes what you need to approve.

This guide helps you prepare a dimensional sign inquiry and review the proposed design. Keep one brief with the artwork revision, site photographs, and decisions below so the design, quote, and installation discussion refer to the same sign.

Decide Which Part of the Message Gets Depth

Mark the most important element in your logo: the business name, symbol, or both. Then identify the supporting information, such as a tagline or department name. Ask for a version that raises the main element and a version that raises more of the artwork. Compare them at the size and viewing position you actually expect.

A small tagline does not have to become separate dimensional letters just because the name does. It might remain a printed or applied graphic on a backer. Keep the brand owner involved if simplifying a detail, changing spacing, or removing a line would alter the approved logo.

Describe the viewing task precisely. “Recognize the company from the lobby entrance” and “read the small wording while standing at reception” are two different checks. A close-up rendering alone cannot settle both.

Compare Individual Letters With a Backer Panel

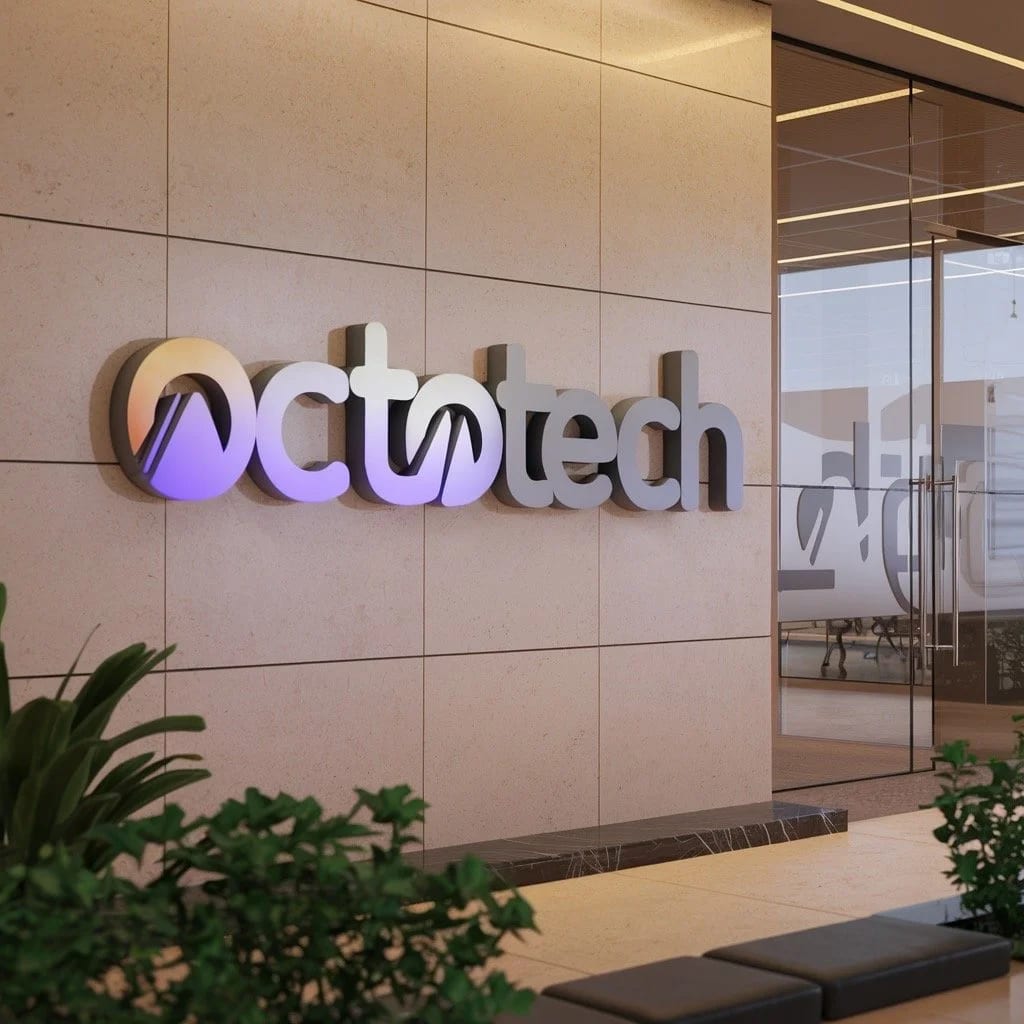

• Individual letters on the wall: the existing wall becomes the background between and around the characters. Include its color, texture, seams, and nearby fixtures in the design review. Ask how the separate pieces will be positioned and what wall changes the installation requires.
• Raised elements on a backer: a panel establishes its own background and outer shape. Approve the panel’s perimeter, margins around the logo, exposed edges, and visible fixing details as part of the design.
• A shaped backer following the logo: an outline sits behind some or all of the artwork. Check the visible border around small openings and narrow strokes; an outline that looks even on screen may need adjustment for the proposed construction.

A backer is a design and assembly choice, not a promise of damage-free installation. The complete sign still needs a reviewed attachment plan. For a leased space, establish what the property owner allows and who handles eventual removal or wall repair.

Ask for Three Views of the Same Proposal

1. Front view: check spelling, logo proportions, overall width and height, spacing, and margins. The drawing should identify the artwork revision and finished dimensions.
2. Side view: check the thickness of each component, any intentional gaps, and the total projection from the wall to the front face. A material thickness and a gap behind it are separate dimensions.
3. Placement view: review the proposal on a current photograph showing the whole wall, reception desk or doorway, lighting, and surrounding objects. Confirm measurements separately; a photo mockup is a visual aid.

For an office or lobby sign, review the proposal from the entrance and from the nearest normal viewing position. For a storefront sign, include an approach photograph and the building’s sign criteria in the brief. If lighting is proposed, request a separate explanation of the lighting effect and the electrical work included in the quote.

Label the Layers Before Comparing Materials

Use a simple list, numbered from the wall outward. For each component, record its shape, material, thickness, face finish, edge finish, and relationship to the next layer. “Brushed metal look” describes an appearance; the specification should still say what the component is made from.

For example, your list might identify a background panel, raised name, and separate logo symbol. An acrylic component, a painted letter, and a metal-faced component can lead to different proposals. Ask the fabricator to identify the actual products and finishes instead of choosing solely from a material category.

Edges deserve their own decision because people may see them while walking past the sign. Ask whether the side matches the face, contrasts with it, or exposes the material. When color, sheen, or edge appearance matters, agree on a physical sample and identify it in the approval record; a screen preview is not the sample.

Resolve Fine Details at the Finished Size

Send the original logo artwork along with the requested size. Ask the fabricator to flag narrow strokes, small openings, punctuation, and isolated pieces that need adjustment. Review those changes before approving the complete layout.

Manufacturer requirements show why this review is specific to the proposed build. Gemini’s flat-cut acrylic design guide lists different requirements for letter thickness, stroke width, openings, and mounting options. Those specifications apply to its products; they are not universal dimensions for every acrylic sign or a statement that a particular product is included in your quote.

If a detail cannot be made as proposed, ask to compare a larger overall sign, an approved simplified detail, or a flat graphic combined with the raised elements. The artwork setup guide explains what to send for that conversation.

A Hypothetical Lobby Brief: Two Useful Options

This is an illustrative planning example, not a completed San Jo project. Imagine an office with a blue symbol, dark company name, and a small tagline. The sign will sit on a pale wall behind reception, and the company wants the symbol to stand out.

Option A: raise the symbol and company name individually, with the wall visible between them. The review needs to establish how the dark name reads against the actual paint and how the small tagline will be produced and positioned.

Option B: place the name and tagline as flat graphics on a panel, with only the symbol raised. The review now includes the panel’s outer dimensions, background color, edge treatment, and the symbol’s position relative to the flat artwork.

Compare both options using the same overall size and placement photograph. Ask for the scope and price difference, then choose based on the intended appearance, brand requirements, and installation conditions. Neither arrangement is automatically cheaper, more durable, or easier to install.

Check What the Price and Approval Actually Cover

Before authorizing fabrication, reconcile the proof and written quote:

• Artwork: final wording, logo revision, quantity, and finished dimensions agree.
• Construction: every layer has an identified material and finish; the side view explains thicknesses, gaps, and total projection.
• Appearance: required samples are approved, and any visible hardware or panel seams are shown.
• Site: the location, mounting surface, access conditions, and responsible installer are recorded.
• Responsibilities: property approvals, any required permit review, electrical work, removal, and wall preparation have named owners and a stated scope.
• Handoff: the quote identifies assembly, packing, delivery or installation, timing, and the information supplied with the sign.

Keep unresolved items visible. If the site review changes the size, attachment plan, or construction, ask for the affected drawing and price to be updated before approval.

Choose the Installation or Shipping Handoff

For installation in San Jose and Silicon Valley, send the site address, current photographs, rough dimensions, access information, and property requirements with the brief. The installation scope should identify the work included for that location.

For nationwide shipping, provide the destination ZIP code and identify who will receive and install the sign. Confirm whether it arrives assembled or in separate pieces, and which positioning templates, hardware, care information, and instructions are included. Have the receiving installer review the proposal before fabrication when installation is handled separately.

Ready to compare a layered logo concept? Send San Jo Sign Co your artwork and site photographs, along with the intended size and the decision you need help making. A clear brief makes it easier to quote the sign you mean.

FAQ

Does every part of a logo need to be raised?

No. Ask to compare a raised name or symbol with secondary details printed or applied to a backer. The choice should preserve the brand and work at the intended viewing distance. Fine details need a fabrication review at the finished size.

What should a proof show for a layered sign?

Request the overall dimensions, a front view, a side view with layer thicknesses and any gaps, and a placement view on a current site photograph. Identify each layer’s material and finish, and record any separate sample, mounting, or site approval still needed.

Can a backer panel eliminate holes in the wall?

Do not assume that it can. A backer changes how the letters and panel are arranged, but the complete assembly still needs an attachment plan suited to the wall. Confirm permitted wall changes with the property contact and the proposed mounting scope with the installer.

Can San Jo Sign Co ship a layered dimensional sign?

San Jo Sign Co ships custom signs directly to customers nationwide. The quote should identify what arrives assembled, what arrives as separate pieces, and which templates, hardware, or instructions are included. Installation is a separate scope, available for projects in San Jose and the listed Silicon Valley service areas.
